Ytterbium-100
Ytterbium Lasers
Ultrafast | 1030nm
Average power
up to 100W
Pulse energy
up to 1mJ at 100kHz
Pulse duration
<250fs

Introduction

The quality of any laser application crucially depends on the performance of the driving light source, i.e. the laser itself. In addition, most applications ask for more and more average power from the laser source to be cost-effective or sensitive enough.

AFS‘s ultrafast fiber lasers are characterized by an outstanding performance combined with flexibility and maximum stability. All essential parameters are software controlled and can be tuned over a wide range, making them an extremely valuable tool in many applications.

Specifications

The following specs show only our main platforms. We happily customize a system exactly to your needs.

Ytterbium-30 S

Central wavelength

approx. 1030 nm

Repetition rate

50 kHz (or single pulse via externally controllable AOM upgrade) up to 30 MHz, others on request

Pulse energy

up to 200 µJ

Peak power

up to 0.5 GW

Average power

up to 30 W

Pulse duration

< 250 fs … 5 ps adjustable, others on request

Polarization

linear

Beam quality

close to diffraction-limited, M² < 1.2

RIN slow (Average power)

< 0.5% RMS [1/ (24 hours) … 1 Hz]

RIN fast (Pulse energy)

< 0.5% RMS [1 Hz … frep/2]

Beam pointing

< 10 µrad RMS (< 5% nat. divergence)

Beam diameter

approx. 3 mm

Dimensions laser (W×D×H)

112 cm × 41 cm × 25 cm

Mass

approx. 80 kg

Logging

Logging of all operation parameters via control software, remote monitoring and service access

Additional features

Turnkey reliability, all parameters software-controlled, temperature-stabilized and dust-sealed housing

Ytterbium-30 HE

Central wavelength

approx. 1030 nm

Repetition rate

50 kHz (or single pulse via externally controllable AOM upgrade) up to 30 MHz, others on request

Pulse energy

up to 400 µJ

Peak power

up to 1.0 GW

Average power

up to 30 W

Pulse duration

< 250 fs … 5 ps adjustable, others on request

Polarization

linear

Beam quality

close to diffraction-limited, M² < 1.2

RIN slow (Average power)

< 0.5% RMS [1/ (24 hours) … 1 Hz]

RIN fast (Pulse energy)

< 0.5% RMS [1 Hz … frep/2]

Beam pointing

< 10 µrad RMS (< 5% nat. divergence)

Beam diameter

approx. 3 mm

Dimensions laser (W×D×H)

112 cm × 41 cm × 25 cm

Mass

approx. 80 kg

Logging

Logging of all operation parameters via control software, remote monitoring and service access

Additional features

Turnkey reliability, all parameters software-controlled, temperature-stabilized and dust-sealed housing

Ytterbium-60 S
Central wavelength

approx. 1030 nm

Repetition rate

50 kHz (or single pulse via externally controllable AOM upgrade) up to 30 MHz, others on request

Pulse energy

up to 200 µJ

Peak power

up to 0.5 GW

Average power

up to 60 W

Pulse duration

< 250 fs … 5 ps adjustable, others on request

Polarization

linear

Beam quality

close to diffraction-limited, M² < 1.2

RIN slow (Average power)

< 0.5% RMS [1/ (24 hours) … 1 Hz]

RIN fast (Pulse energy)

< 0.5% RMS [1 Hz … frep/2]

Beam pointing

< 10 µrad RMS (< 5% nat. divergence)

Beam diameter

approx. 3 mm

Dimensions laser (W×D×H)

112 cm × 41 cm × 25 cm

Mass

approx. 80 kg

Logging

Logging of all operation parameters via control software, remote monitoring and service access

Additional features

Turnkey reliability, all parameters software-controlled, temperature-stabilized and dust-sealed housing

Ytterbium-60 HE

Central wavelength

approx. 1030 nm

Repetition rate

50 kHz (or single pulse via externally controllable AOM upgrade) up to 30 MHz, others on request

Pulse energy

up to 400 µJ

Peak power

up to 1.0 GW

Average power

up to 90 W

Pulse duration

< 250 fs … 5 ps adjustable, others on request

Polarization

linear

Beam quality

close to diffraction-limited, M² < 1.2

RIN slow (Average power)

< 0.5% RMS [1/ (24 hours) … 1 Hz]

RIN fast (Pulse energy)

< 0.5% RMS [1 Hz … frep/2]

Beam pointing

< 10 µrad RMS (< 5% nat. divergence)

Beam diameter

approx. 3 mm

Dimensions laser (W×D×H)

112 cm × 41 cm × 25 cm

Mass

approx. 80 kg

Logging

Logging of all operation parameters via control software, remote monitoring and service acces

Additional features

Turnkey reliability, all parameters software-controlled, temperature-stabilized and dust-sealed housing

Ytterbium-100
Central wavelength

approx. 1030 nm

Repetition rate

50 kHz (or single pulse via externally controllable AOM upgrade) up to 30 MHz, others on request

Pulse energy

up to 1 mJ

Peak power

up to 2.5 GW

Average power

up to 100 W

Pulse duration

< 250 fs … 5 ps adjustable, others on request

Polarization

linear

Beam quality

close to diffraction-limited, M² < 1.2

RIN slow (Average power)

< 0.5% RMS [1/ (24 hours) … 1 Hz]

RIN fast (Pulse energy)

< 0.5% RMS [1 Hz … frep/2]

Beam pointing

< 10 µrad RMS (< 5% nat. divergence)

Beam diameter

approx. 3 mm

Dimensions laser (W×D×H)

132 cm × 41 cm × 30 cm

Mass

approx. 120kg

Logging

Logging of all operation parameters via control software, remote monitoring and service acces

Additional features

Turnkey reliability, all parameters software-controlled, temperature-stabilized and dust-sealed housing

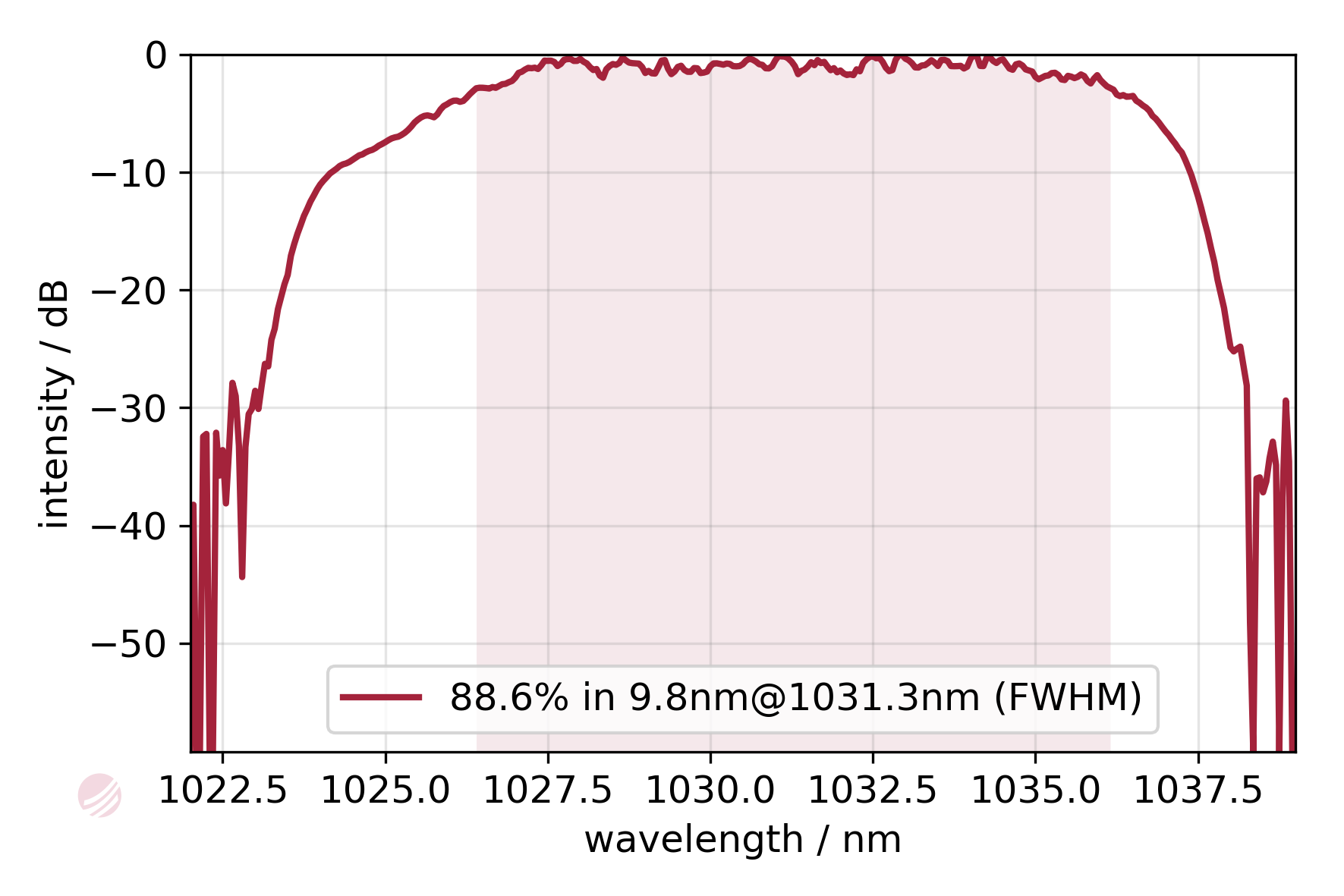

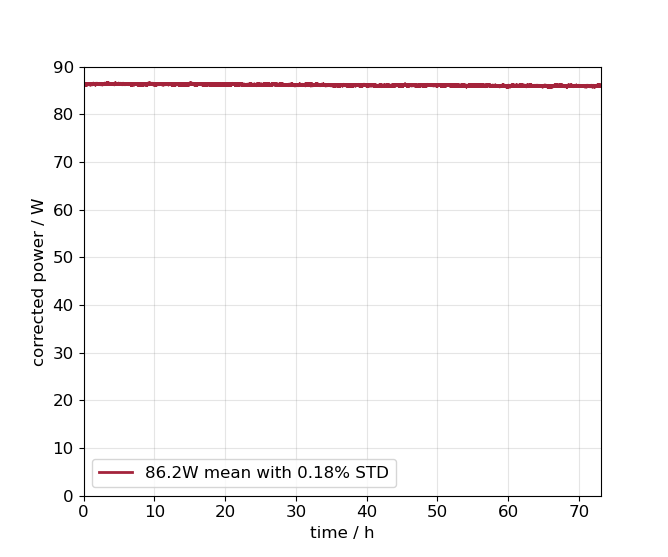

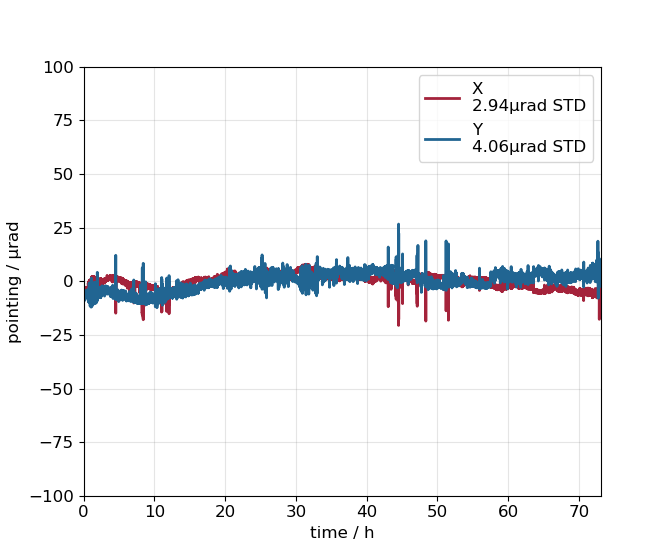

Performance
