Introduction
The quality of any laser application crucially depends on the performance of the driving light source, i.e. the laser itself. In addition, most applications ask for more and more average power from the laser source to be cost-effective or sensitive enough.

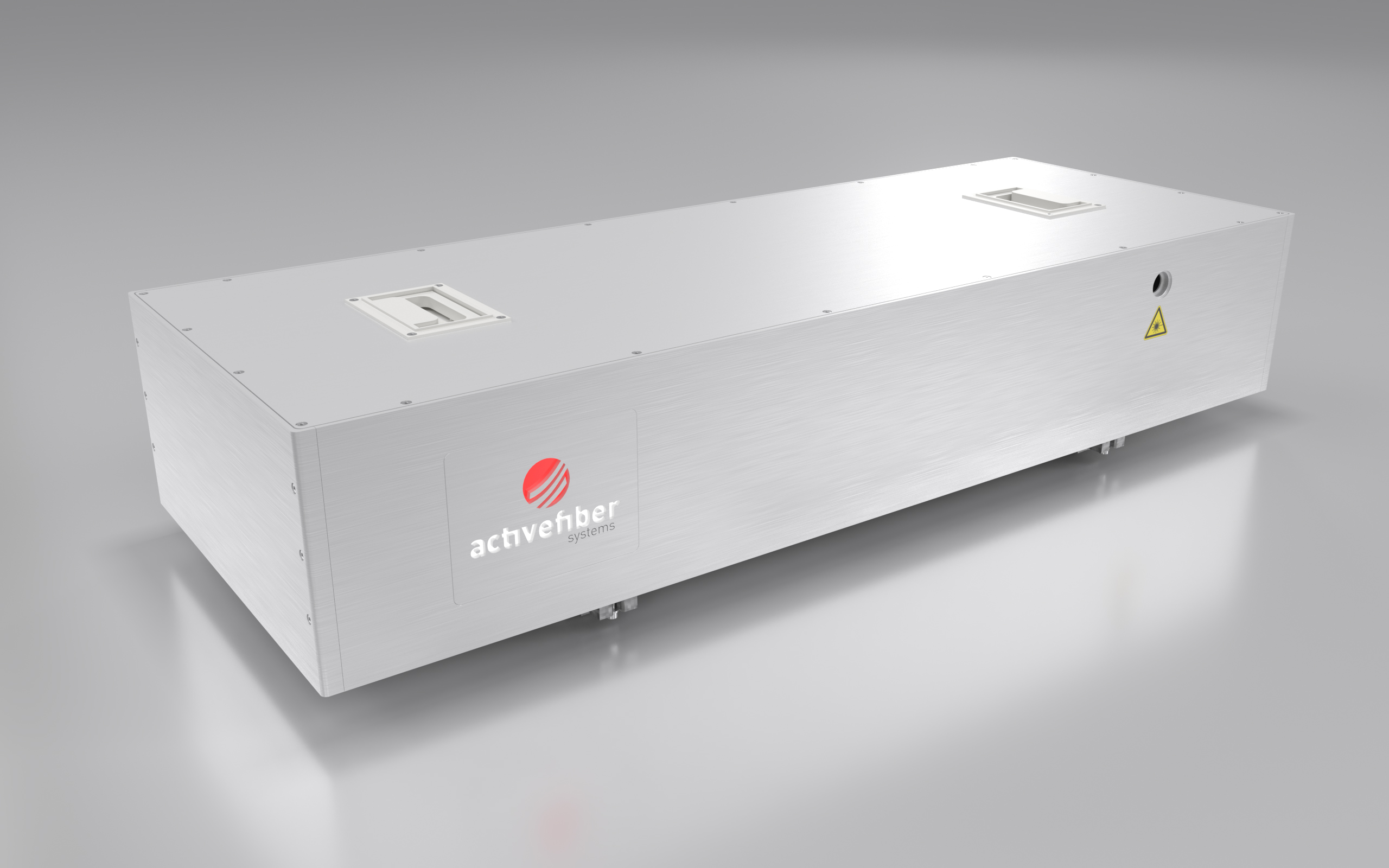

AFS‘s ultrafast fiber lasers are characterized by an outstanding performance combined with flexibility and maximum stability. We have been selling high-power fiber lasers for more than a decade now and continue to push the boundaries of what is possible. The newest model Thulium-300 offers unprecedented ultrafast average power at 2µm central wavelength in combination with a very high pulse energy.
All essential parameters are software controlled and can be tuned over a wide range, making them an extremely valuable tool in many applications.

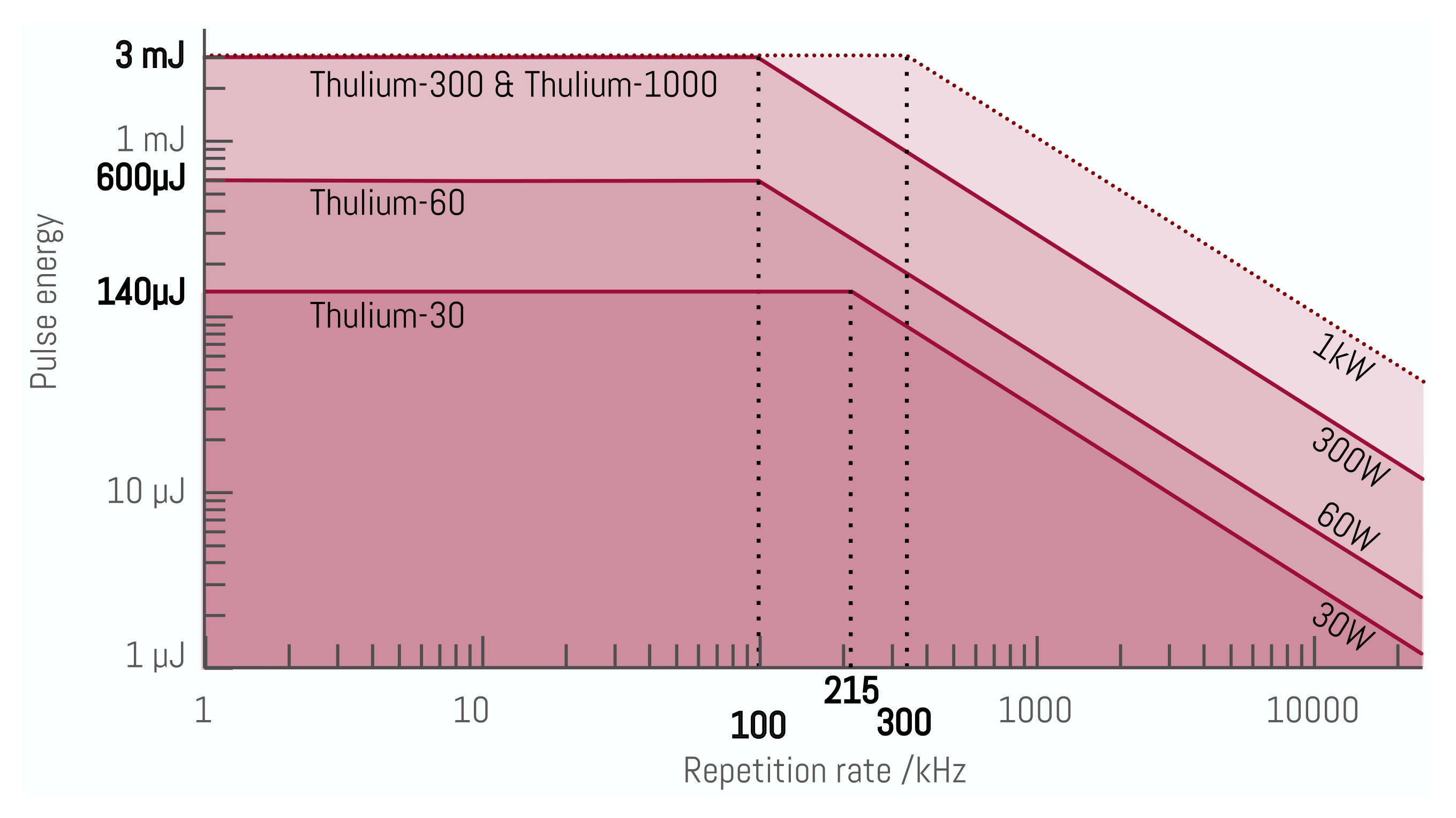

The following specs show only our main platforms. We happily customize a system exactly to your needs.
up to 30 W

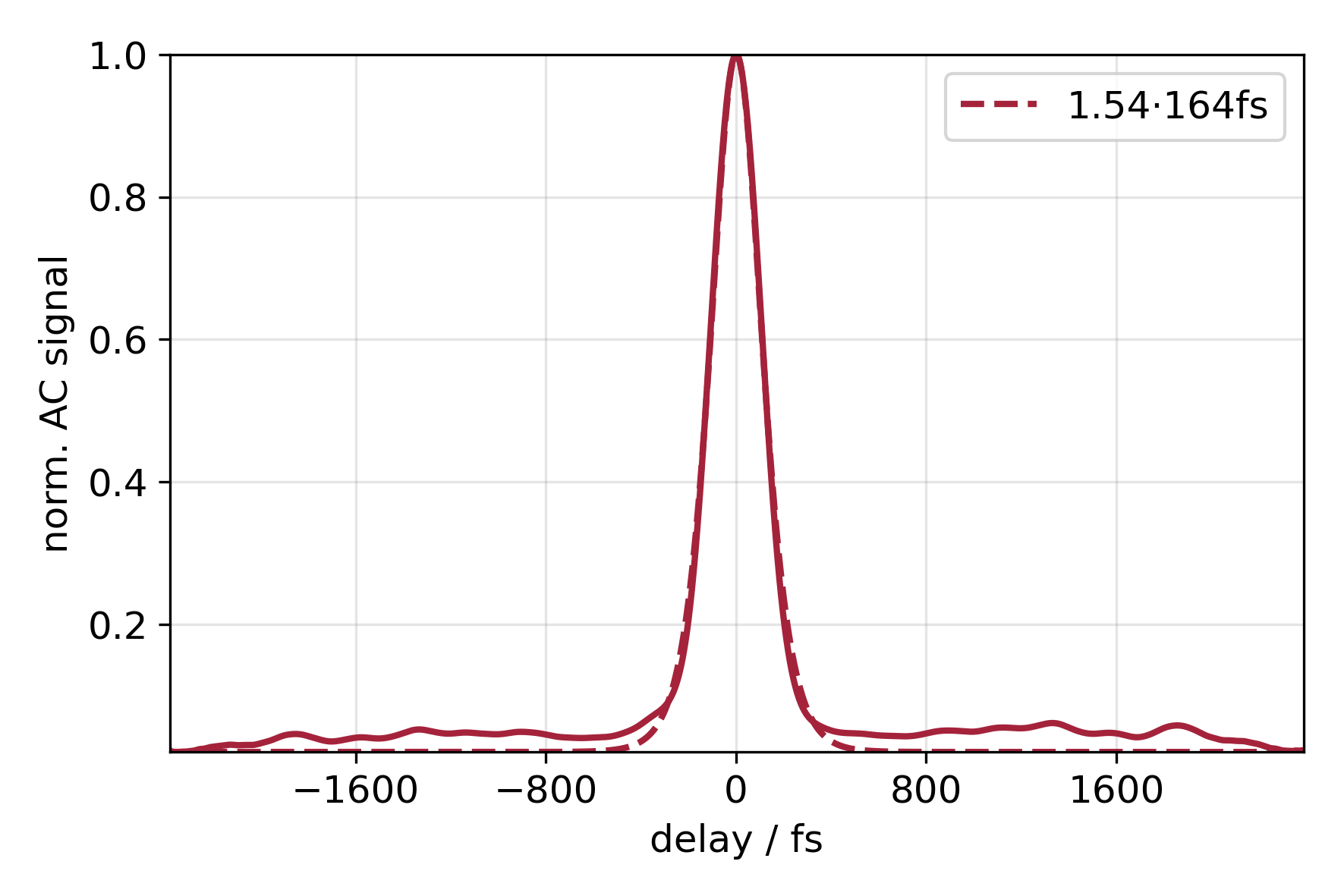

< 200fs
linear
close to diffraction-limited, M² < 1.3

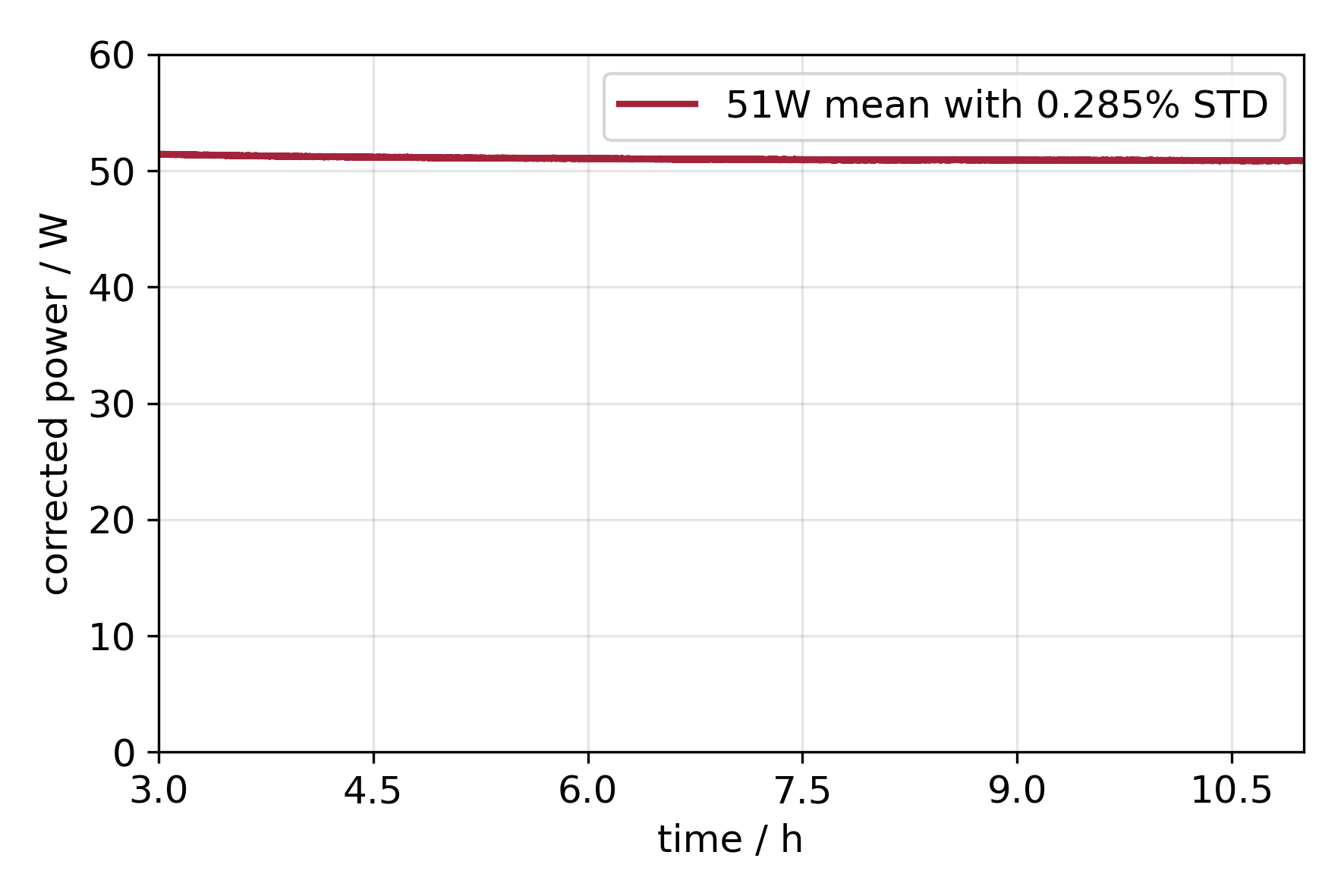

< 0.5% RMS [1/ (24 hours) … 1 Hz]
< 1.5% RMS [1 Hz … frep/2]

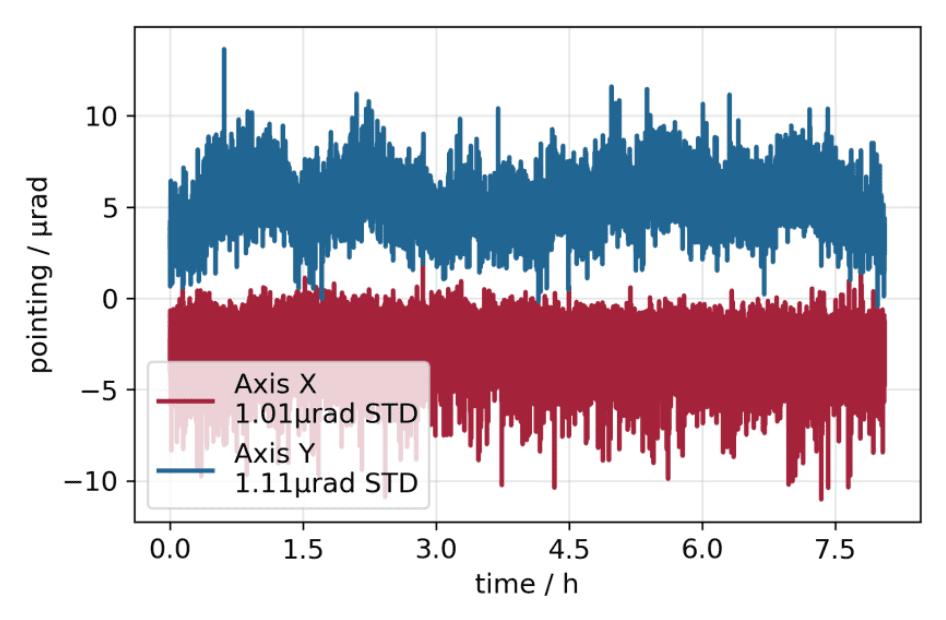

< 20 µrad RMS (< 10% nat. divergence)
approx. 3 mm
approx. 132 cm × 41 cm × 30 cm
approx. 200 kg
Logging of all operation parameters via control software, remote monitoring and service access
Turnkey reliability, all parameters software-controlled, temperature-stabilized and dust-sealed housing
up to 500 µJ
up to 40 W
< 200fs
linear
close to diffraction-limited, M² < 1.3
< 0.5% RMS [1/ (24 hours) … 1 Hz]
< 1.5% RMS [1 Hz … frep/2]
< 20 µrad RMS (< 10% nat. divergence)
approx. 3 mm
approx. 132 cm × 41 cm × 30 cm
approx. 200 kg
Logging of all operation parameters via control software, remote monitoring and service access
Turnkey reliability, all parameters software-controlled, temperature-stabilized and dust-sealed housing
up to 3 mJ
up to 300 W
< 200fs
linear
close to diffraction-limited, M² < 1.3
< 0.8% RMS [1/ (24 hours) … 1 Hz]
< 2% RMS [1 Hz … frep/2]
< 20 µrad RMS (< 10% nat. divergence)
approx. 6 mm
approx. 260 cm × 150 cm × 40 cm
approx. 700 kg
Logging of all operation parameters via control software, remote monitoring and service access
Turnkey reliability, all parameters software-controlled, temperature-stabilized and dust-sealed housing
