Introduction
Compact, alignment-free and all-fiber picosecond laser source for CARS microscopy delivering synchronized pump and Stokes pulses from a single fiber end. This air-cooled and turn-key CARS laser source has a great benefit for the user as the fiber delivery eliminates alignment of the spatial and temporal pulse overlap.
High-quality and high-speed microscopic multimodal nonlinear imaging is possible by e.g. simultaneously probing the CARS CH-vibrational-levels of lipids around 2850 cm-1, the second harmonic generation (SHG) and the two-photon excited fluorescence (TPEF) signals.
The following specs show a range of what is possible. Please contact us with your desired specifications and we happily customize a system exactly to your needs.
600 cm-1 … 2250 cm-1
845nm…992nm
1027nm…1033nm
<15cm-1
<6cm-1
Typically 10MHz
Typically 10MHz
<5s (full range)
>50mW
>100mW

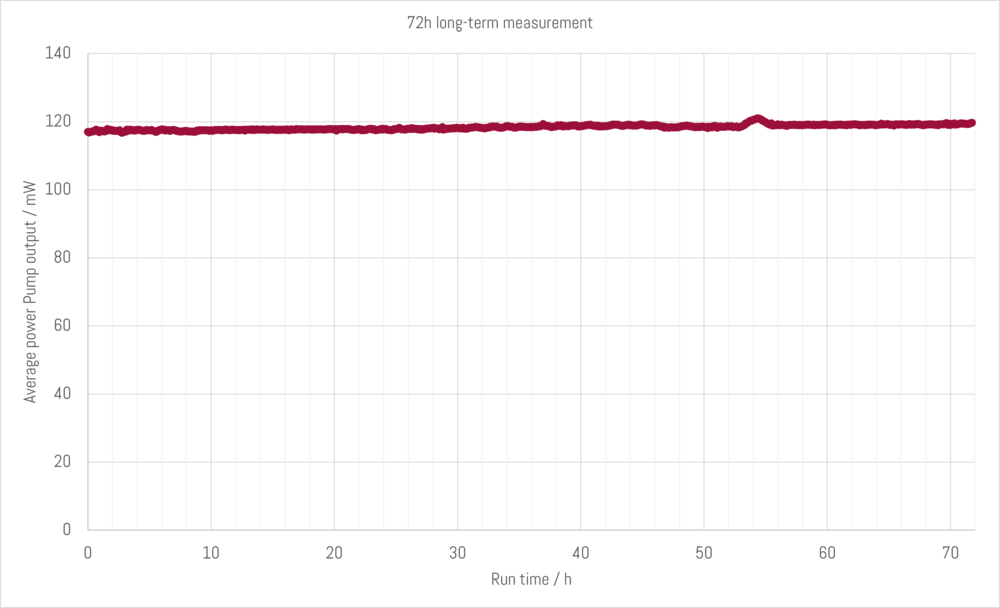

<1.5% RMS over 1h
≤30ps
≤70ps
Linear
M² < 1.3 (fiber-coupled)
Overlapped or independent outputs possible
Passively overlapped or actively adjustable to compensate dispersion effects in attached microscope
Available as options RIN < -145dBc/Hz at frep/2
Outputs can be tuned independently from 0 to full power while maintaining pulse duration and bandwidth
<1min
Software, RS232, USB, customizable

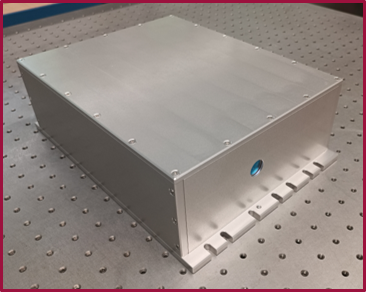

approx. 400mm × 350mm × 150mm
<20kg
<500W
air-cooled
600 cm-1 … 2250 cm-1
1039nm…1053nm
1039nm…1053nm
<6cm-1
Typically 10MHz
Typically 10MHz
<5s (full range)
>100mW
>30mW
<1.5% RMS over 1h
≤70ps
≤30ps
Linear
M² < 1.3 (fiber-coupled)
Overlapped or independent outputs possible
Passively overlapped or actively adjustable to compensate dispersion effects in attached microscope
–
Outputs can be tuned independently from 0 to full power while maintaining pulse duration and bandwidth
<1min
Software, RS232, USB, customizable
approx. 400mm × 350mm × 150mm
<20kg
<500W
air-cooled
2750 cm-1 … 3150 cm-1
775nm…806nm
1120nm…1350nm
<45cm-1
<15cm-1
Typically 10MHz
Typically 10MHz
<5s (full range)
>100mW
>150mW
<1.5% RMS over 1h
≤40ps
≤40ps
Linear
M² < 1.3 (fiber-coupled)
Overlapped or independent outputs possible
Passively overlapped or actively adjustable to compensate dispersion effects in attached microscope
–
Outputs can be tuned independently from 0 to full power while maintaining pulse duration and bandwidth
<1min
Software, RS232, USB, customizable
approx. 400mm × 350mm × 150mm
<20kg
<500W
air-cooled
DWFL-2010-SRS
600 cm-1 … 3300 cm-1
Typically between 600nm and 1100nm
Typically between 600nm and 1100nm
<15cm-1
<10cm-1
18MHz
36MHz
<5s (full range)
≥200mW
≥500mW
<1.5% RMS over 1h
≤40ps
≤40ps
Linear
M² < 1.3
Overlapped or independent outputs possible
Passively overlapped or actively adjustable to compensate dispersion effects in attached microscope
Available as options RIN < -145dBc/Hz at frep/2
Outputs can be tuned independently from 0 to full power while maintaining pulse duration and bandwidth
<1min
Software, RS232, USB, customizable
approx. 750mm × 750mm × 250mm
<70kg
<500W
air-cooled
