Introduction
Drive the future of silicon processing! Combining the unique capabilities of ultrafast Thulium lasers within a modular design, the activeTwo redefines efficiency, versatility and serviceability while offering unique specifications at 2 µm central wavelength. This laser is made to be seamlessly integrated into your processes, harnessing cutting-edge technology to allow for the highest productivity at reliable quality.
Please get in touch with us to discuss possible applications tests in our facilities in Jena.
1980nm
up to 100 µJ (at up to 150 kHz)
up to 15 W
<400 fs – 5 ps adjustable, or up to 1.5 ns
linear
close to diffraction-limited, M² < 1.3

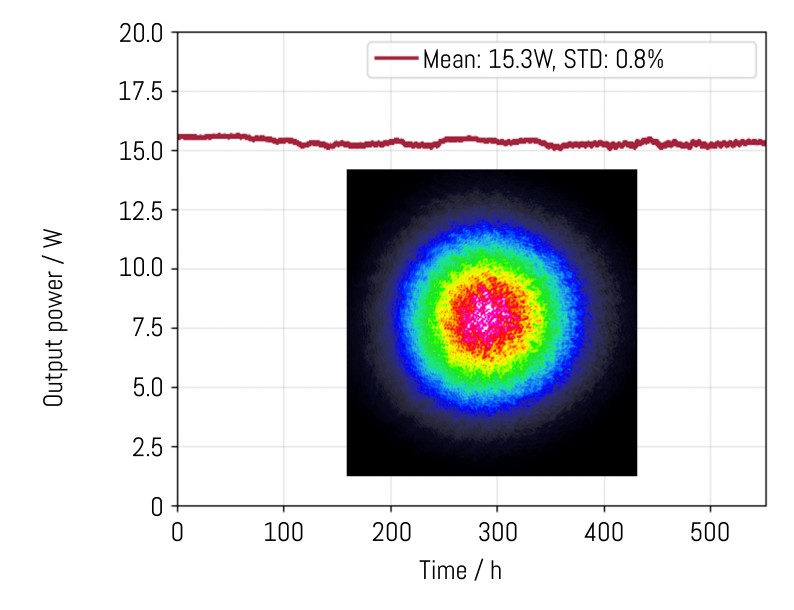

<1% RMS [1/ (24 hours – 1 Hz]
<2% RMS [1 Hz – frep/2]

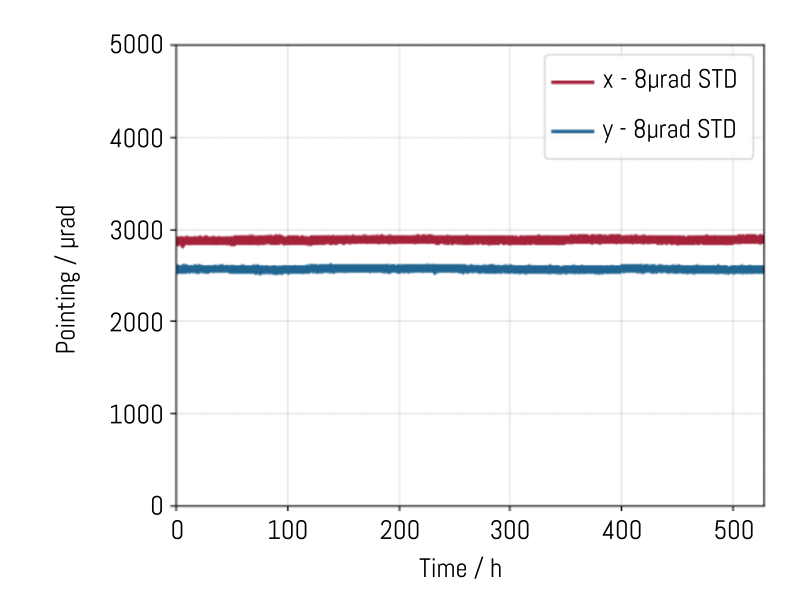

<10 µrad RMS

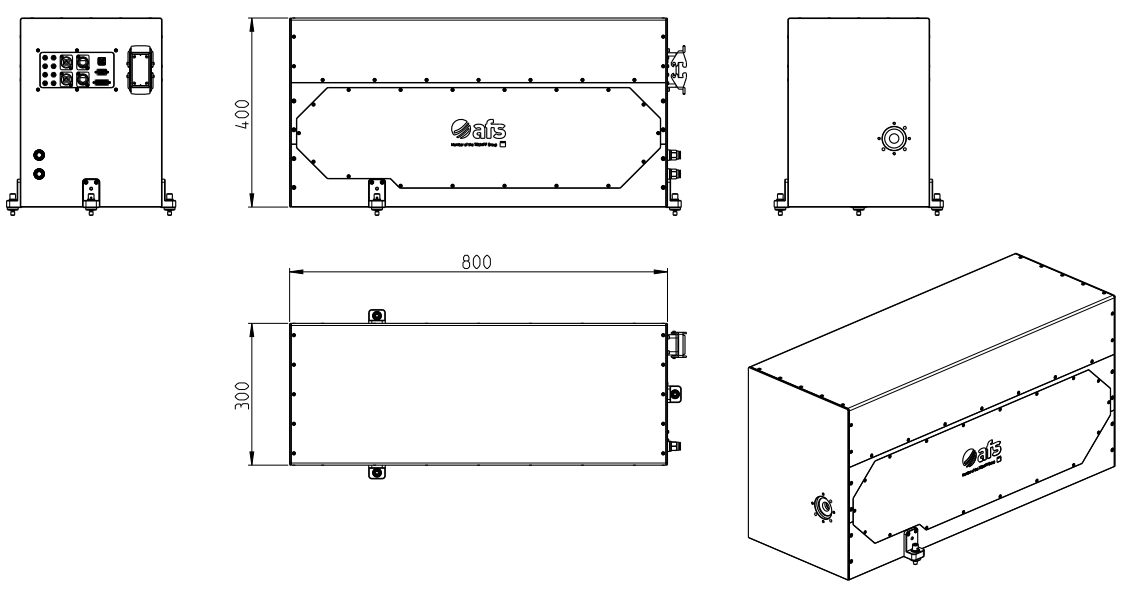

800 mm × 300 mm × 400 mm, <100 kg
Logging of all operation parameters via control software, remote monitoring and service access
Turnkey reliability, software-controlled parameters, optical isolation, shutter, RTC6 interface, software-API
